Last week I needed to connect a database from remote using VPN.
The VPN is connected to a secured network, so I couldn’t connect directly to the database.
Since I am using Toad for Oracle which is based on oracle client – I needed a transparent solution for that connection.
At the past I wrote a post about Using ssh X11 tunnel through a bastion host to connect to a database server , at that post I described how to forward SSH and X11.
Now I will describe a way to connect to the database using SQL*Net (usually port 1521) on Windows.
Download plink from https://www.putty.org , you can download putty package or just standalone plink.
Run the following command line:
plink -N -L localport:dbserver:dbport getwayuser@getwayserver

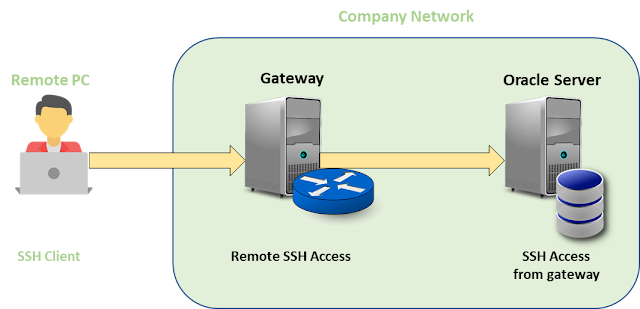

Do this on both machines (REMOTE PC Windows machine and the server you have access to – Gateway) to chain the SSH tunnels.
Example:
Gateway server (assuming Linux):
ssh -N -L1521:dbserver:1521 dbserveruser@dbserver
Your PC:
plink -N -L 1521:getwayserver:1521 getwayuser@getwayserver
The tnsnames.ora entry must look like you are running a local database, e.g.
dboverssh =
(DESCRIPTION =
(ADDRESS_LIST =
(ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
)
(CONNECT_DATA =
(SERVICE_NAME = crm)
)
)
